Bluetooth Controller
The Makeblock Bluetooth Controller features 15 buttons and 2 thumbsticks, which are programmable. Not only is it compatible with a variety of Makeblock robots with built-in Bluetooth modules, but also comes with complementary programs, which are ready to use upon being uploaded. You can enjoy a cleaner, more professional robotic control experience in the classroom, at home or in a robotics competition setting.
The Bluetooth Controller is compatible with products such as mBot (Bluetooth version), mBot Ranger (Bluetooth version), the Ultimate series, Airblock, MotionBlock, and the Bluetooth module in the Maker Platform. You can also download the default program associated with your robots and upload it to the main control board for pairing, thereby operating your Makeblock robots wirelessly. You can also make use of the controller to interact with Scratch stage after building games or animations using mBlock.
Programme buttons any way you like
Featuring 15 buttons and 2 thumbsticks, the Bluetooth Controller is programmable with graphical coding. Pair the Controller with your Makeblock robots for easy controlling and supple maneuvering.
Front View

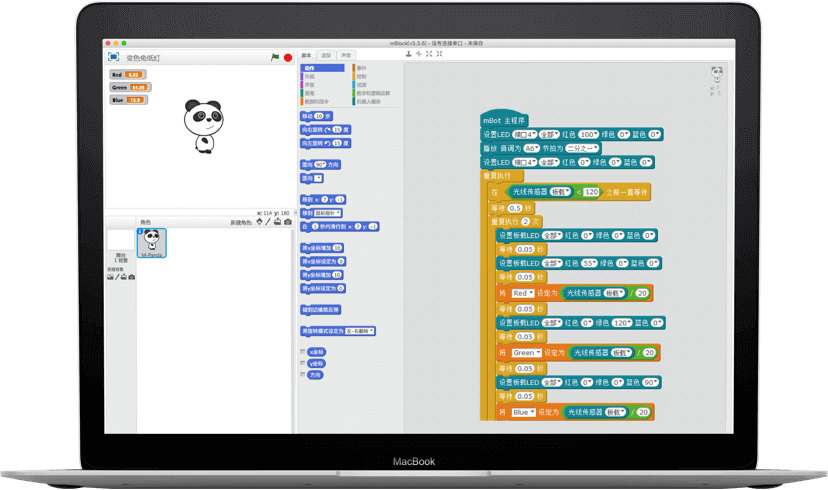

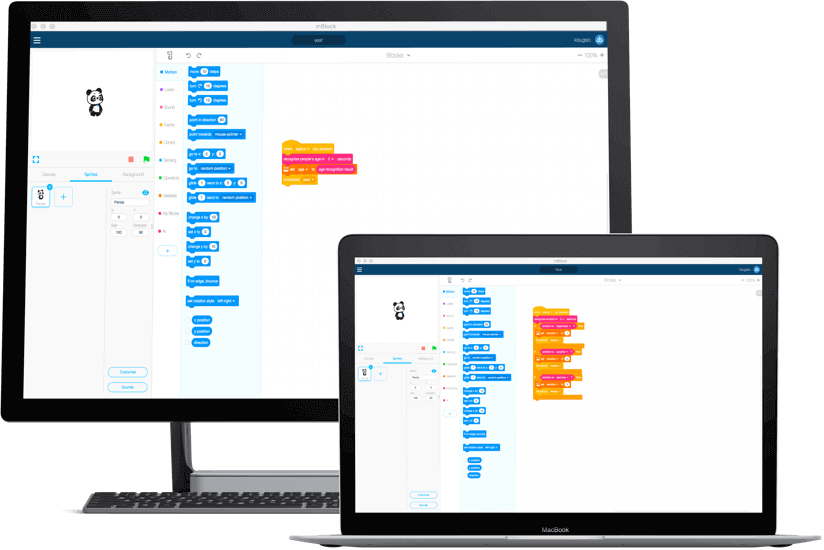

Graphical Coding
Bluetooth Pairing
The Bluetooth Controller is incredibly user-friendly at robotics competitions, thanks to its anti-interference technology, which effectively prevents mishaps caused by multiple robots operating in the same setting. Improve the projects you build, and better your team’s robotic control, by taking part in our MakeX Robotics Competition – a robotics competition platform that promotes multidisciplinary learning within the fields of science and technology. Showcase your skills and ingenuity!
Software
mBlock 5 (PC)
mBlock 3 (PC)
Manuals
Specifications
ABS
Bluetooth version
Support 4.0+
Data transfer distance
20m
Working current
≤25mA
Emission power
4dBm
Data transmission
≤100ms (Low-latency streaming)
Battery
2 AA batteries
Support OS
macOS / Windows
Package dimension
170 × 110.5 × 54 mm（L × W × H)
Product dimension
149 × 88 × 46 mm（L × W × H)
